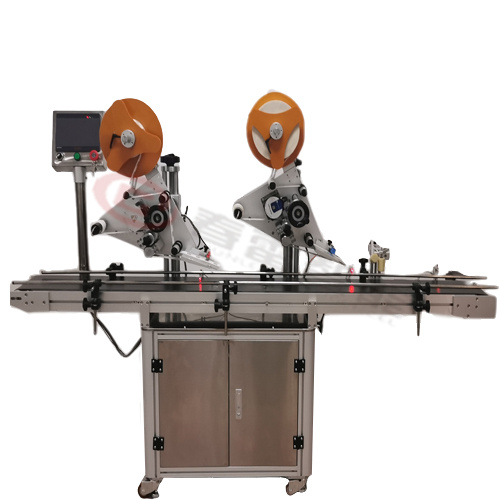

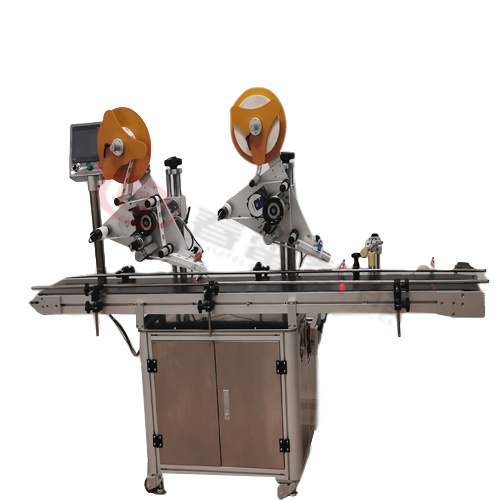

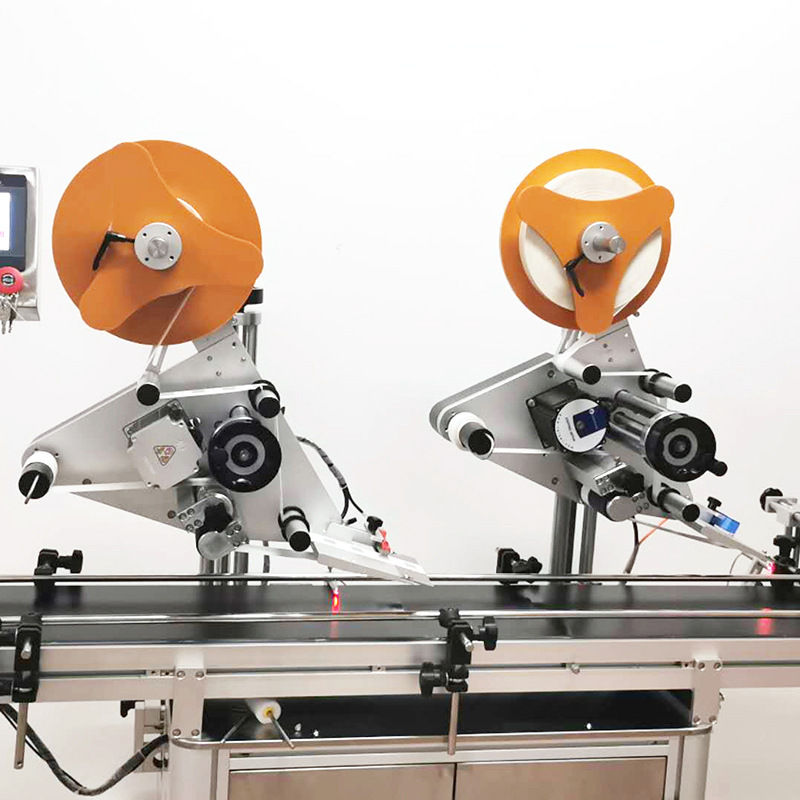

Flat labeling machine on outer box gantry
  • Flat labeling machine on outer box gantry Flat labeling machine on outer box gantry
  • Flat labeling machine on outer box gantry Flat labeling machine on outer box gantry
  • Flat labeling machine on outer box gantry Flat labeling machine on outer box gantry

Flat labeling machine on outer box gantry

You can rest assured to buy Chunlei Flat labeling machine on outer box gantry from our factory. With high-quality products, good reputation and high-quality service, the products sell well in Europe, America, Southeast Asia, the Middle East and other markets. We sincerely cooperate with customers and merchants for win-win, common development and common progress.Optional coding machine or inkjet printer to the labeling head can be realized on the label to print production date, batch number and printing bar code and other information. It can be used with a variety of packaging lines.

Send Inquiry

Product Description

As the professional manufacture, we would like to provide you Chunlei Flat labeling machine on outer box gantry. Dongguan Chunlei Intelligent Equipment Co., Ltd. regards quality as the life of the enterprise, strictly manages quality and actively participates in market competition, with remarkable performance, receiving support from domestic customers, while actively exploring the international market, exporting products to the Philippines, Pakistan, Australia, New Zealand, Venezuela, India, Japan, the Netherlands, the United States and other countries, the quality of products has been widely praised and has left a good impression on customers.

Introduction of assembly line labeling machine

It can be matched to the assembly line to label the flowing products on the upper plane, side, and arc to realize online labeling, such as matching to the coding conveyor belt to label the flowing objects. It can be used with automatic flat labeling machine, automatic positioning vertical round bottle labeling machine and other equipment.

Optional coding machine or inkjet printer to the labeling head can be realized on the label to print production date, batch number and printing bar code and other information.

It can be used with a variety of packaging lines.


Advantages of assembly line labeling machine

1. Simple matching, can be directly installed on the assembly line and packaging machine, independent control or linkage control, automatic labeling, and unmanned labeling production;

2. Flexible application, equipped with different labeling mechanisms, which can realize labeling on flat and uneven surfaces;

3. Convenient adjustment, the adjustment structure adopts a single rod structure, the header can be flexibly adjusted with six degrees of freedom x/y/z, and it can be flexibly matched to different pipelines;

4. The labeling accuracy is high, the label tape deflection correction mechanism prevents the label from deviating, the subdivision stepping motor drives the label, and the front and rear positions of the label are accurate;

5. High stability, an electric control system composed of PLC+touch screen+needle-shaped electric eye+label electric eye, which supports 7×24 hours operation of the equipment.


Technical parameters of assembly line labeling machine:

The following are the technical parameters of the standard model, other special requirements and functions can be customized


Applicable label length:

6mm~250mm

Applicable label width (bottom paper width):

20mm~150mm

Applicable product length:

Determined according to the actual product

Applicable label roll outer diameter (mm):

φ280mm

Applicable label roll inner diameter (mm):

φ76mm

Labeling accuracy (mm):

±1mm

Labeling speed (pcs/min):

40~150pcs/min

Weight (kg):

About70kg

Frequency (HZ):

50HZ

  Voltage (V):

220V

Power (W):

150W(Traction step)

Equipment dimensions (mm) (length×width×height):

About1100mm×700mm×1450mm

Features of assembly line labeling machine

1. Simple adjustment, intelligent control, with no objects and no labeling, no label automatic correction and automatic label detection functions, 2. Touch screen operation interface, easy to operate;

3. Powerful function, with production counting function, power saving function, production number setting prompt function, parameter setting protection function,

4. Optional functions and components:

(1) Hot coding/printing function;

(2) Add labeling device;

(3) Other functions (customized according to customer requirements).


Application Case:


Scope of application of assembly line labeling machine

1. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.

2. Applicable products: boxes, bags, paper cards, boxes, barrels, plates, tubes, cans, etc.

3. Application industry: widely used in printing, toys, daily chemicals, stationery, food, electronics, packaging tableware, board and other industries.


Manufacturer strength

Dongguan Chunlei Intelligent Equipment Co., Ltd. (WWW.CHUNLEIAUTO.CN) is a modern high-tech enterprise specializing in the manufacture of labeling machine equipment. Its products include automatic labeling machines, automatic labeling machines, labeling machines, and self-adhesive stickers. Automatic labeling equipment such as labeling machine, card labeling machine, flat labeling machine, round bottle labeling machine, side labeling machine, flat labeling machine, round bottle labeling machine, semi-automatic labeling machine, real-time printing labeling machine, etc. , And we have our own R&D team and advanced design concepts. The successful research and development of the mask sponge sticking machine has been put into the market in March 2020, and we have received good market feedback.

We have advanced technology concepts, insist on technological innovation, and use technology to serve our customers, and are committed to solving customer production automation problems.


FAQ:

Q1: Is it difficult to install the machine?

A:The workshop should prepare complete facilities, such as power and air compressors. For the first installation, we provide instructional video guidance. If there are other problems, we can also provide video guidance to troubleshoot.

Q2: What is the delivery time of the machine?

A: The standard machine is generally in stock, and can be shipped within 3 to 5, and we can complete the production within 7 to 15 working days for standard modification or non-standard customization.

Q3: How to get the price?

A: We will usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in a hurry to ask for a price, please send us an email or contact us in other ways so that we can provide you with a quotation.

Q4: How about the quality control of your company?

A: We always attach great importance to quality control to ensure that our customers finally get what they want.

Q5: If I place an order, how will you ship my items?

A: Whether it is by sea, air or express, you can choose the most suitable order for you.
